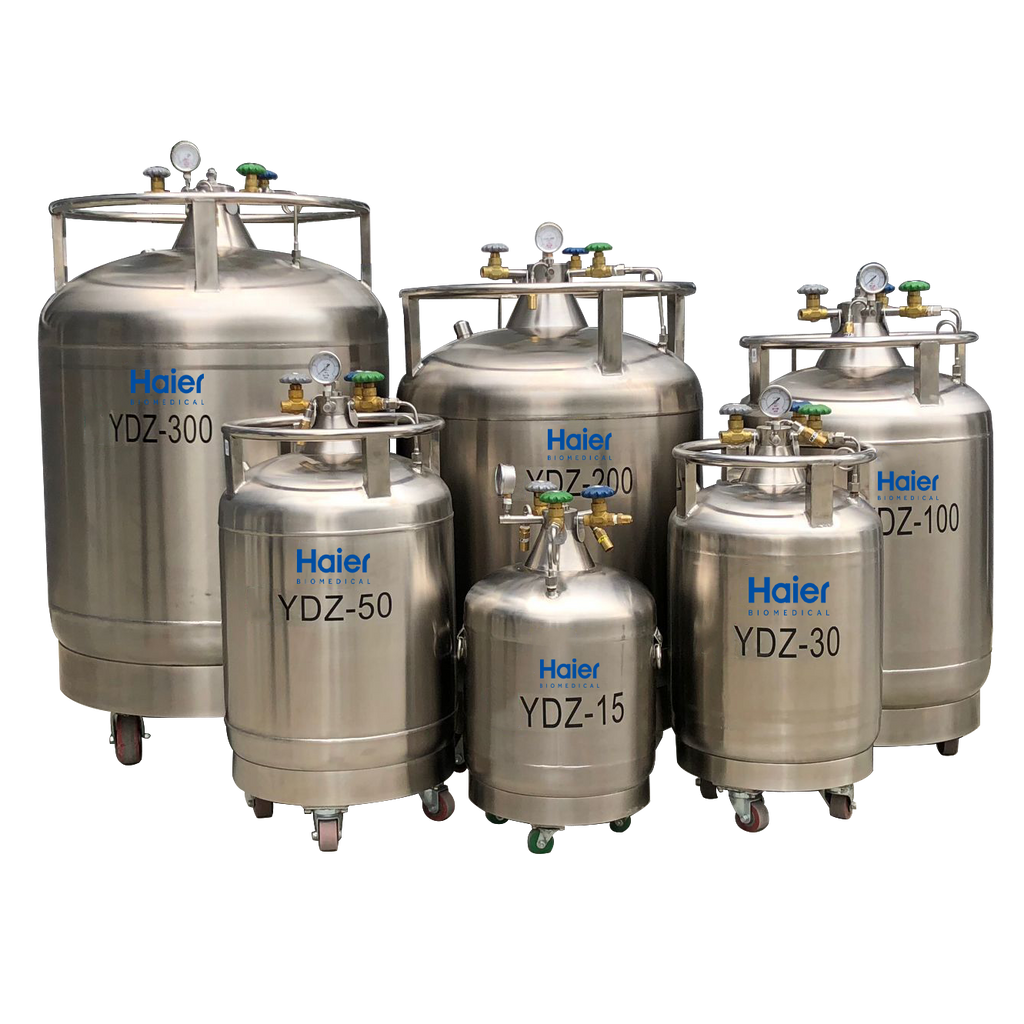

Liquid Nitrogen Supplement Series for LN2 Storage and Supply incorporates the latest innovation, its unique design utilises the pressure generated from the vapourisation of a small amount liquid nitrogen to discharge LN2 into other containers. Storage capacities range from 5 to 500 litres.
Product Features
All Models are Equipped with Safety Valve. Models 200L and Above Have Additional Rupture Disc
Rotary Ring Construction
Labelled Valves for Easy Identification
All Welded Stainless Steel Construction
5 year Vacuum Warranty
Specifications
| Model |
Volume of LN2(L) |
Height (mm) |
Outside Diameter (mm) |
| YDZ-5 |
5L |
652 |
354 |
| YDZ-15 |
15L |
771 |
404 |
| YDZ-30 |
30L |
900 |
454 |
| YDZ-50 |
50L |
1009 |
506 |
| YDZ-100(K) |
100L |
1179 |
606 |
| YDZ-150 |
150L |
1208 |
706 |
| YDZ-200(K) |
200L |
1288 |
758 |
| YDZ-240K |
240L |
1405 |
758 |
| YDZ-300(K) |
300L |
1484 |
858 |
| YDZ-500(K) |
500L |
1607 |
1008 |
