Biobank series for large scale storage is designed to ensure the maximum storage capacity with the minimum consumption of liquid nitrogen to lower the overall cost of operation .
Product Features
Large Scale Storage Capacities from 13,000 to 94,875 x Standard 2ml Cryovials
Vapour Phase Storage to Prevent Cross Contamination
Excellent Temperature Uniformity
One-Touch Defogging for Easier Access
Liquid Nitrogen Splash-Proof Feature Provides Safer Operation
Can be used to store all kinds of biological sample
click here to download product brochure
click here to download flyer
Specifications
| Model |
Volume of LN2(L) |
2ml Volume |
Inside Neck Diameter (mm) |
Operating Height (mm) |
| YDD-1000-465 |
1014 |
51000 |
465mm |
1090 |

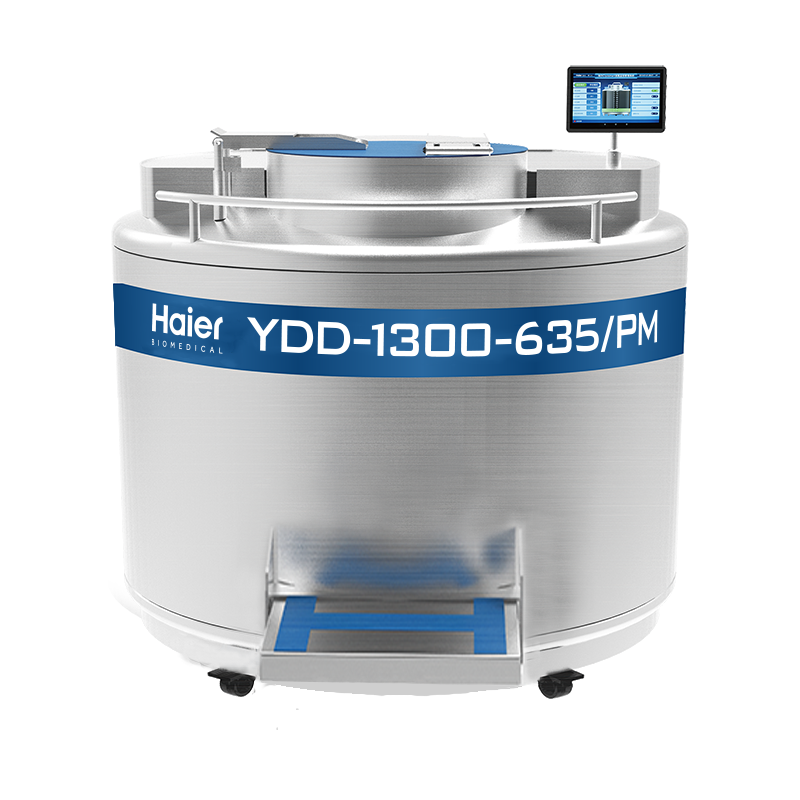

| YDD-1300-635 |
1340 |
58500 |
635mm |
997 |
| YDD-1600-635 |
1660 |
76050 |
635mm |
967 |
| YDD-1800-635 |
1880 |
94875 |
635mm |
1097 |
| YDD-350-326 |
350L |
13000 |
326mm |
1263 |
| YDD-370-326 |
370L |
15600 |
326mm |
1096 |
| YDD-450-326 |
460L |
21000 |
326mm |
1212 |

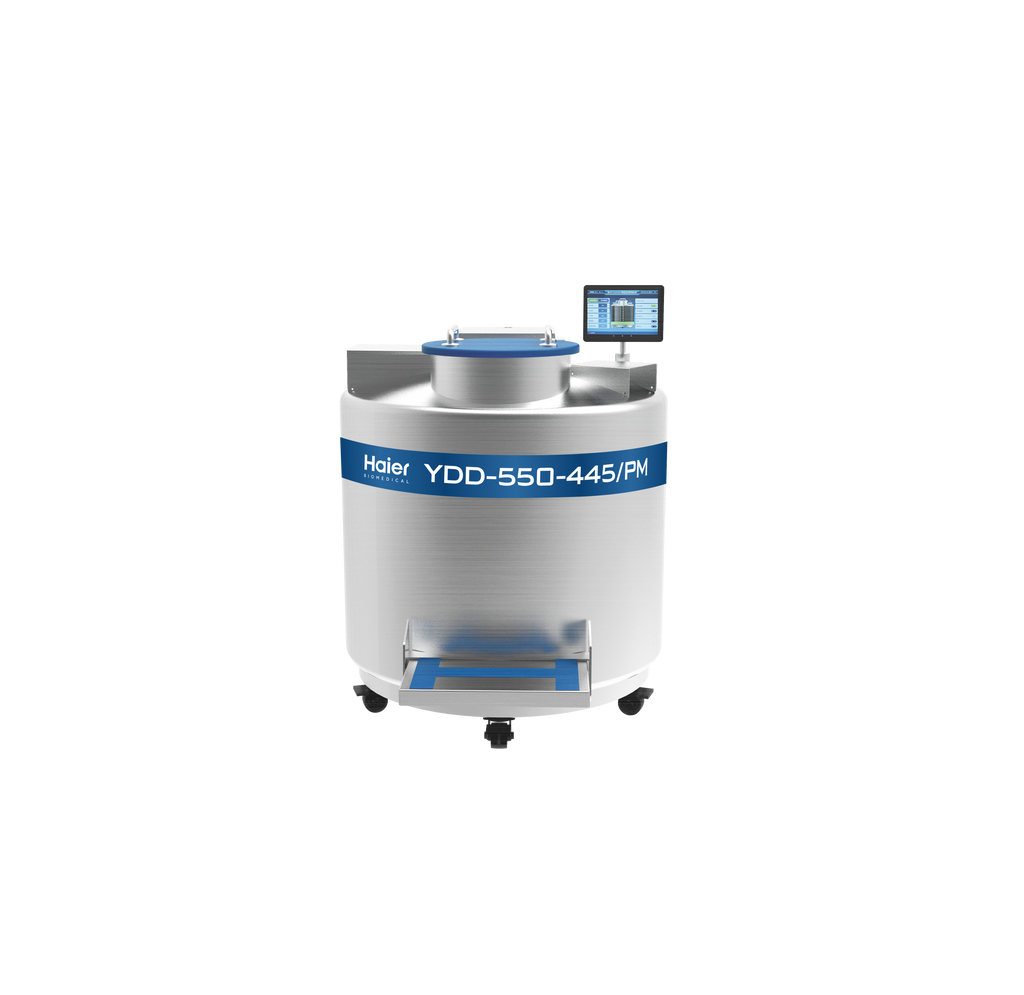

| YDD-550-445 |
587L |
27000 |
445mm |
970 |
| YDD-750-445 |
783L |
37800 |
445mm |
995 |

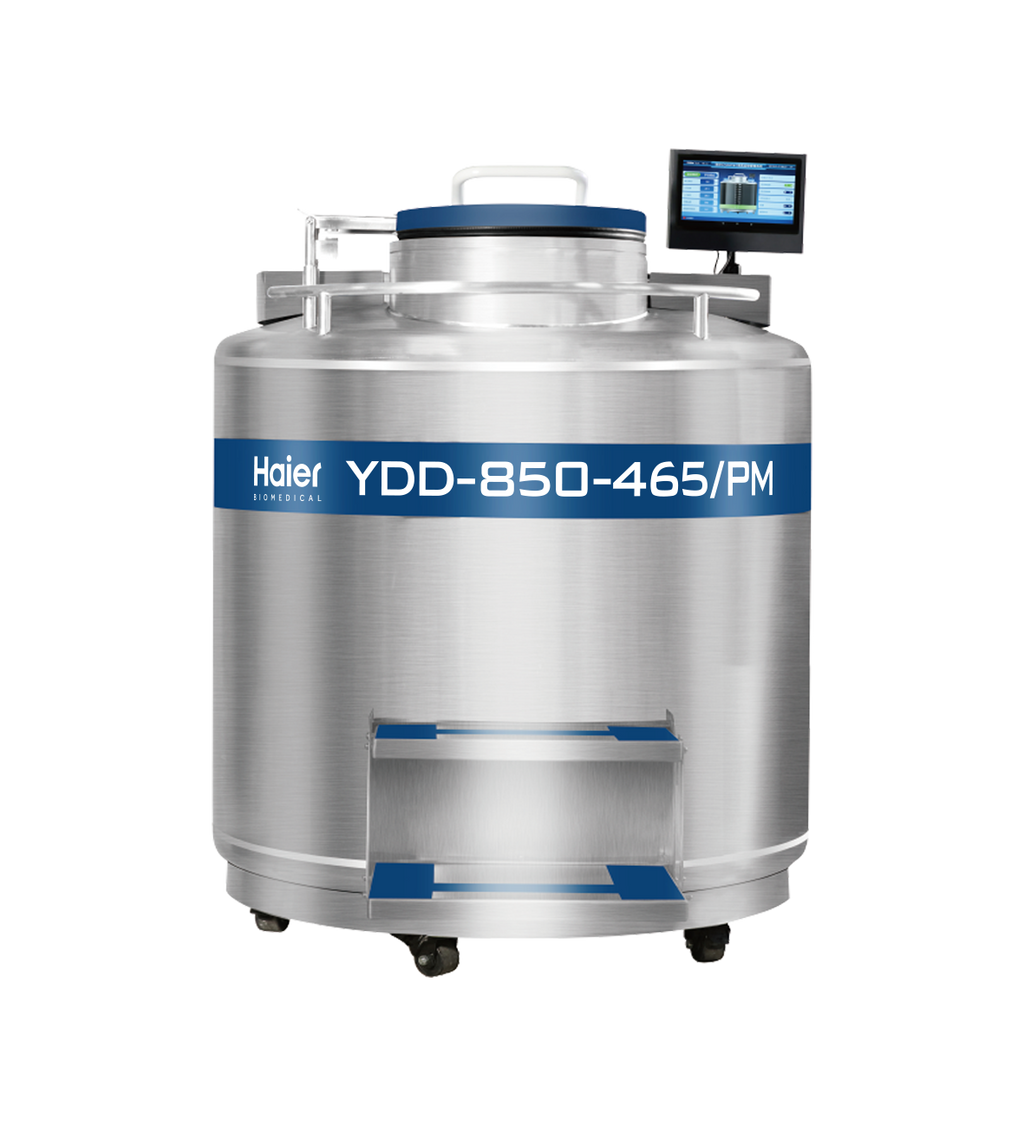

| YDD-850-465 |
890L |
42900 |
465mm |
980 |
