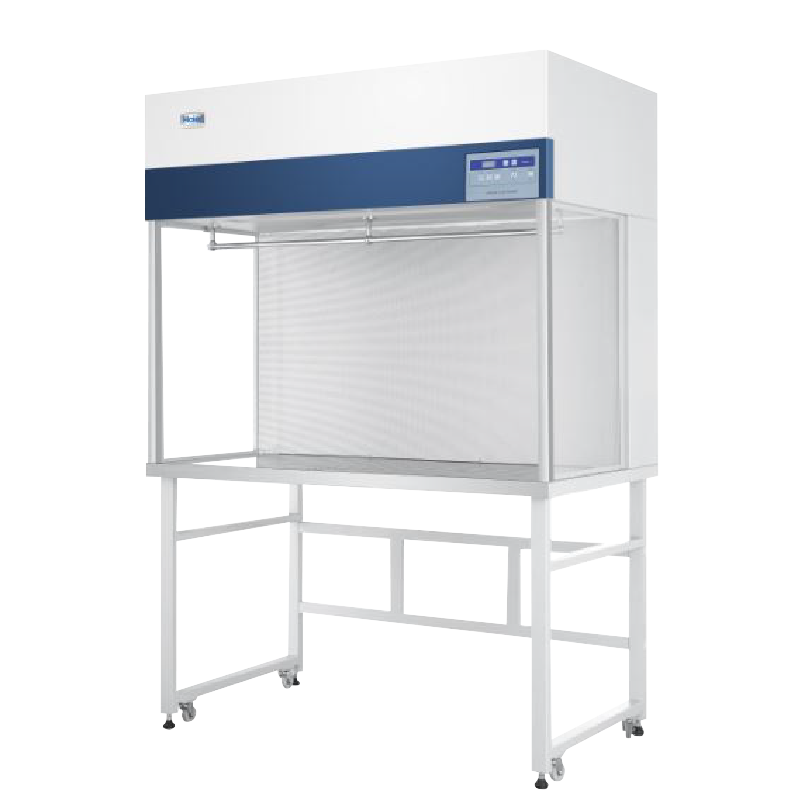

Featuring many technologies and certified to ISO146644.1 Class 5 standard, Haier Biomedical ’s clean bench laminar flow units are suitable for a wide range of clean air applications within various sectors including pharmaceutical, clinical, life science research, photoelectric or microelectronics manufacturing.
Product Features
Product Advantages
● Efficient damp-proof and fire-proof glass fibre HEPA filter, typical efficiency of ≥99.99%. for ≥0.3μm particulate.
● ISO14644.1 Class 5 Standard, air cleanliness exceeds that required for Class 5 clean air applications.
● The industry’s first innovated pre-cleaning function pre-cleans the working area before sample handling to further improve sample/product protection.
● UV lamp start-up delay time prevents operators from being exposed to potentially harmful ultraviolet light. The pre-set function for the ultraviolet sterilization improves user’s operation efficiency.
Features
● Recessed internal lighting reduces eye fatigue.
● One-touch UV lamp operation, ultraviolet light can be set with one single key to automate on/off time and sterilisation time interval from 0 to 24 hours, reducing downtime. Audible and visual alarms remind users to leave, protecting them from UV injury.
● Inter-lock function provides a safer operation. The fluorescent light and ultraviolet light interlock with each other. The ultraviolet light can only be switched on when the fluorescent light is turned off. When the fluorescent light is on, the ultraviolet light is powered off immediately to minimize any risks.
Ergonomic Design
● The working surface is 800mm above the floor and suitable for an operator to stand or sit , allowing for flexible working through the day to reduce operator fatigue and make operations comfortable.
● The delay to start function of the ultraviolet sterilization prevents operators exposure to harmful lighting. When ultraviolet light is switched on, the sound and light alarms will notify operators to leave immediately. The light will come on after 10 seconds to prevent operators from being harmed by the ultraviolet light.
● The pre-set sterilization function improves productivity. The product has a ultraviolet sterilization pre-set timer function which provides more rest to users and improves work efficiency.
● The detachable chassis makes installation and moving convenient. It is equipped with universal casters and adjustable stand with levelling feet for convenient moving and cabinet placement.
Click here to download product brochure
Click here to download product flyer
Specifications
| Model |
Power Supply (V/Hz) |
Certificate |
Flow Type |
Internal Dimensions (W*D*H)(mm) |
| HCB-1600H |
220/60;220/50 |
CE;NMPA(CFDA) |
Horizontal |
1710*550*750 |
